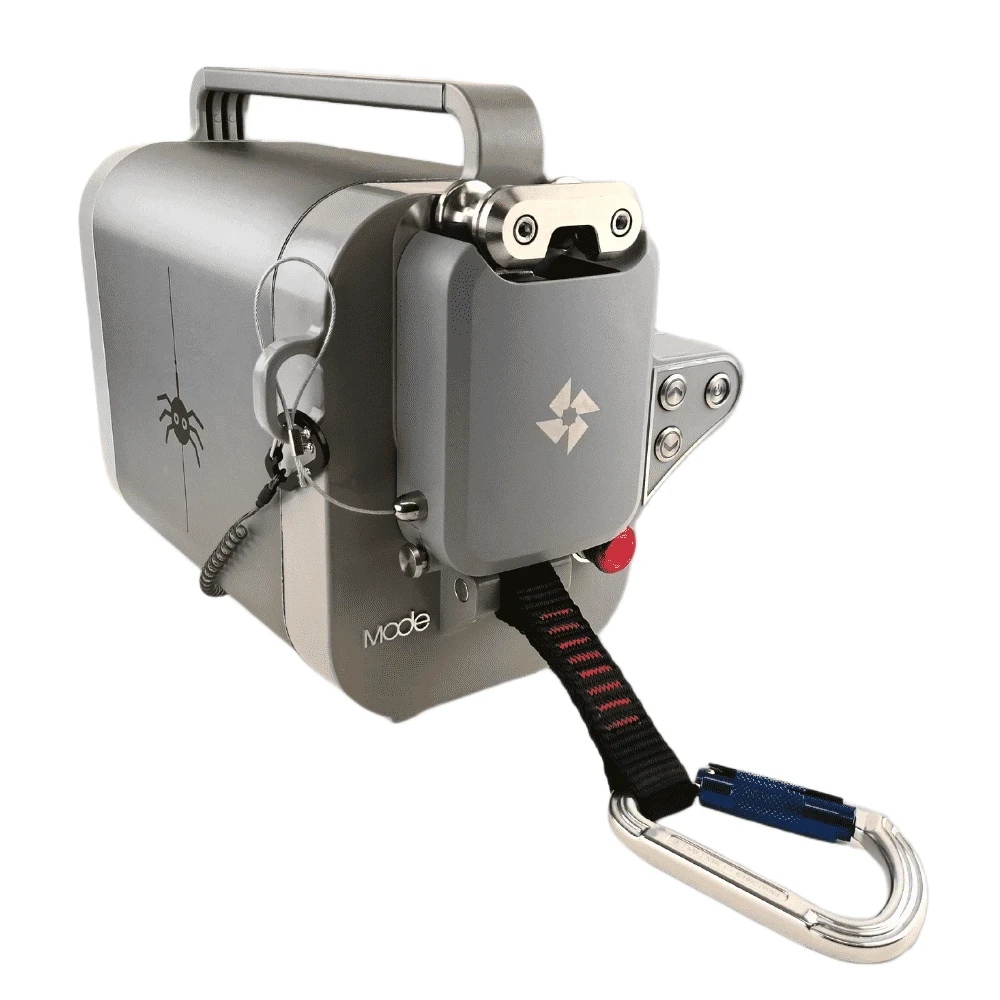

Smart Spider PRO by Mode is a professional tool for safe and efficient movement at heights, ideal for workers in areas such as construction, building maintenance or rescue. This compact but powerful machine allows easy lifting of loads and people up to a maximum weight of 200 kg. Smart Spider combines advanced safety features, flexible controls and high resistance to harsh conditions, making it a reliable tool for professionals.

Key properties

1. 1. Powerful battery and fast charging: the Smart Spider is equipped with a replaceable 36V battery with a capacity of 5000 mAh, which fully charges in 2.5 hours and allows operation at a distance of up to 360 meters on a single charge. (With a load of 100kg. Sum of up and down, i.e. net ascent of 180 metres).
   2. Flexible speed control: the device allows variable speed control, up to 22 m/min on ascent and 30 m/min on descent. The speed can be easily adjusted via a rotary control mechanism or via a mobile app that allows remote control (via WiFi with a range of 80 to 100 m depending on conditions).
   3. Advanced safety features:Smart Spider includes features such as automatic emergency stop, overload protection, anti-slip mechanism and the ability to start the device back on the ground even in the event of a power failure.
   4. Durable design: the IP54 aircraft aluminum construction provides protection against dust and splash water, allowing you to work outdoors in harsh conditions. The total weight of the device is 14.3 kg including the battery, which makes it easy to handle and transport.
   5. Convenient and efficient use: the ergonomic design and intuitive control panel make it easy to work and change settings quickly. The device also includes a display to show the battery status.

   Detailed technical parameters

   • Load capacity: 200 kg
   • Weight: 14.3 kg (including battery)
   • Maximum altitude: 360 m per charge (100 kg load)
   • Speed: 0-22 m/min (climbing), 0-30 m/min (descending)
   • Protection rating: IP54 (resistant to dust and splash water)
   • Material: aircraft aluminum
   • Working rope: EN1891 standard, 10.5 - 11 mm diameter static rope
   • Voltage: 36V
   • Battery capacity: 5000 mAh (fast charge in 2.5 hours)
   • Operating temperature: -20°C to +50°C
   • WiFi range: 80 to 100 m depending on conditions
   • Safety features: automatic emergency stop, manual emergency start, overload protection

Package includes:

• Smart Spider PRO ascender

• Battery 5000 mAh (2×)

• Charger and cable

• Triple-lock carabiner

• Transport trolley case

Work instructions

Lifting people
When used for lifting people, the Smart Spider Power Ascender must be used with personal protective equipment (PPE) in accordance with the regulations for working at heights and above free depth.

Basic requirements:

1. Only certified and inspected equipment is allowed.
2. Only trained and qualified personnel may use the equipment.
3. The workplace must be supervised.
4. The use of a fall arrest system is mandatory when lifting persons.

The rope system must include a main rope and an auxiliary rope for fall protection, both certified to EN1891A. Both ropes must have their own independent anchorage points with a minimum load capacity of 12 kN, which must be assessed by a qualified person. In the event of a failure, the load is transferred to an auxiliary rope which, together with the safety device according to EN12841A, forms a fall prevention system.

Personal security requirements:

1. Use of a full body five point harness complying with EN831:2008 and EN361.
2. Do not use lifting equipment when tired, ill or under the influence of alcohol, drugs or medication.

Before use, ensure:

1. Control of all parts of the system.
2. Use of appropriate personal protective equipment.
3. Proper clothing without loose elements.

When using, pay attention to:

1. Not holding the rope over the lifting device due to the risk of hand injuries.
2. Keeping hands and feet off rotating parts.
