AT HEIGHT RP51 36kN double swivel pulley
Article MPN: RP51
MBS 36 kN || WLL 9 kN || Rope max 13 mm || Efficiency 86% || Weight 495 g
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Variants2
| Color | Availability | Price | Quantity (pc) | |||
|---|---|---|---|---|---|---|
 |
black | Within 10 - 15 days | More |
166,53 $
166,53 $ excl. VAT
|
||
 |
red | Within 10 - 15 days | More |
166,53 $
166,53 $ excl. VAT
|
Product Description

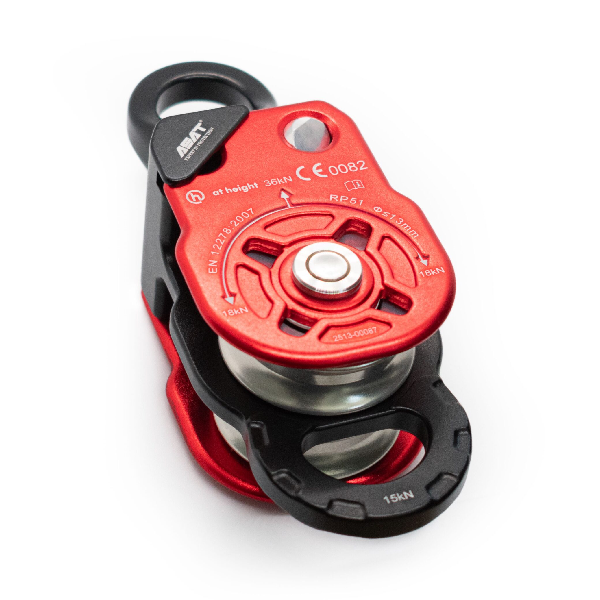

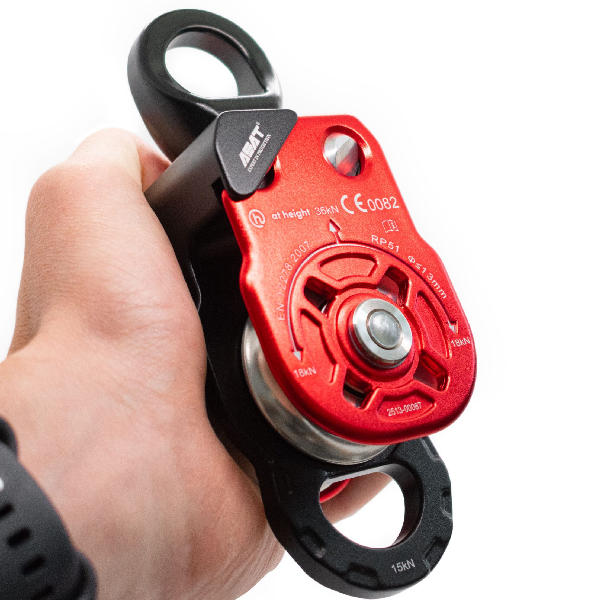

AT HEIGHT RP51 Double Swivel Pulley with Locking Sides
The RP51 pulley features a swivel and two-piece flip-up sidewalls for easy rope handling. Each pulley has a minimum breaking strength of 36 kN and is individually marked with a serial number.
Certified to EN 12278:2007, suitable for ropes up to 13 mm diameter.
- Strength: 36kN MBS
- Certification: CE, EN 12278:2007
- Compatibility: for ropes ≤13 mm
- Weight: 495 g
Specifications
| Article MPN | RP51 |
|---|---|
| Color | black , red |
| Certification | EN 12278 |
| Weight | 495 g |
| Material | aluminium |
| Breaking load (MBS) | 36 kN |
| Working load (WLL) | 9 kN |
| Průměr | 38 mm |
| Rope Diameter | 13 mm |
| Dimensions | 154 x 60 x 54 mm |
| Efficiency | 86% |
Manufacturer/Importer information
| Manufacturing company | AT HEIGHT LIMITED |
|---|---|
| Address | 41c Underbank Old Road, Holmfirth, England, HD9 1AS, United Kingdom |
| info@atheightuk.com |
Download
AT HEIGHT 36 kN product sheet (pdf, 1.1 MB)
AT HEIGHT RP51 product sheet (pdf, 1.2 MB)
AT HEIGHT RP51 manual (pdf, 1.3 MB)
AT HEIGHT RP51 Declaration of Conformity (pdf, 142.1 kB)
