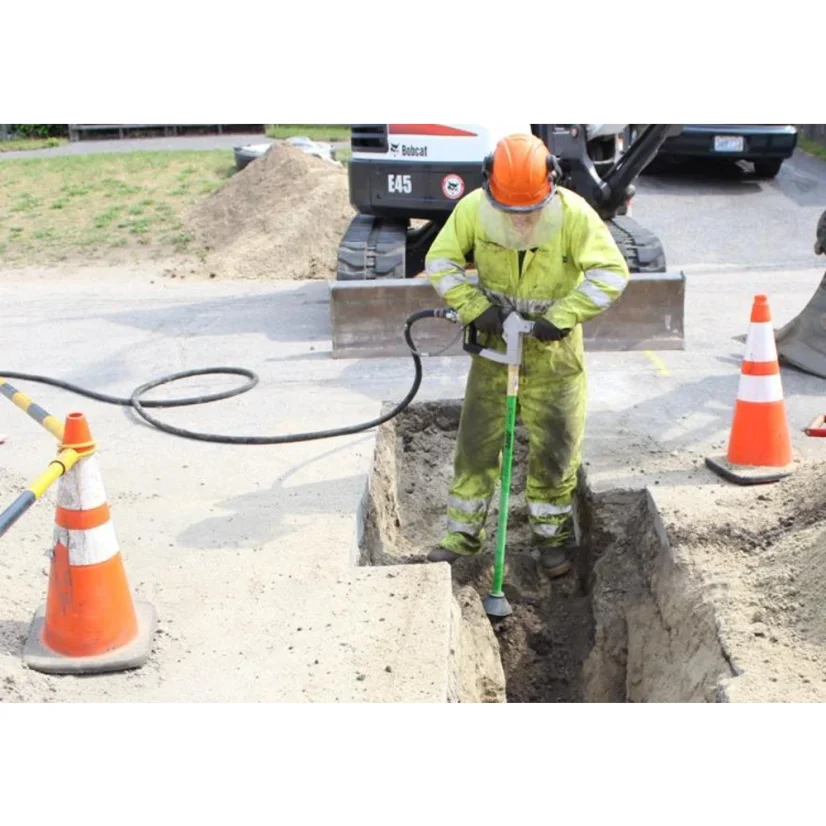

AIRSPADE 4000 Utility Series Kit is a pneumatic excavation tool designed for work in technical infrastructure, especially near underground utilities. It is intended for safe exposure of cables, pipelines and other elements without risk of damage.

The tool uses a supersonic nozzle that creates a narrowly focused high-speed air jet. The jet effectively breaks up soil while solid objects such as cables or pipes remain intact.

The model is equipped with a nickel-aluminium bronze nozzle (non-sparking material) and other components in a non-sparking design, allowing use in environments with explosion risk or near gas lines.

The kit includes an insulated fiberglass barrel (approx. 1.2 m) and an extension approx. 0.9 m, enabling deeper work or a safer distance from the excavation. The barrel is electrically insulated and suitable for work near electrical lines.

The ergonomic handle is equipped with a pressure gauge, dead-man trigger and trigger guard. The design allows precise control even when wearing gloves.

The set also includes a 45° adapter, flexible air hose and transport case.

Key advantages of AirSpade technology

Maximum safety when working near utilities
Non-sparking components and insulated barrel for hazardous environments.

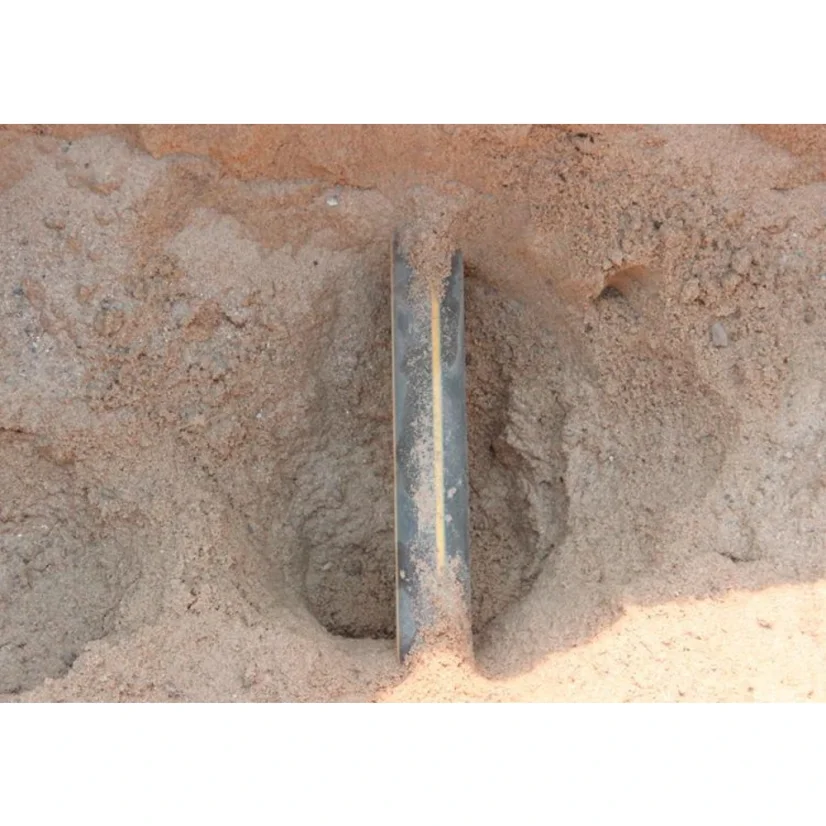

Non-destructive excavation
Air stream breaks soil without mechanical contact.

High performance for technical applications
Suitable for fast exposure of pipes and cables.

Modular design
Extension and accessories allow adaptation to the application.

Technical information

Model: AirSpade 4000 Utility Series Kit
Air consumption: 4.2 m³/min
Barrel length: approx. 1.2 m
Extension: approx. 0.9 m
Overall length: approx. 150–180 cm
Kit weight: approx. 19 kg
Nozzle: supersonic, nickel-aluminium bronze (non-sparking material)
Material: aluminium, fiberglass, brass, bronze
Connection: 3/4"
Hose: length approx. 3 m, diameter approx. 25 mm
Safety features: dead-man trigger, debris shield, pressure gauge

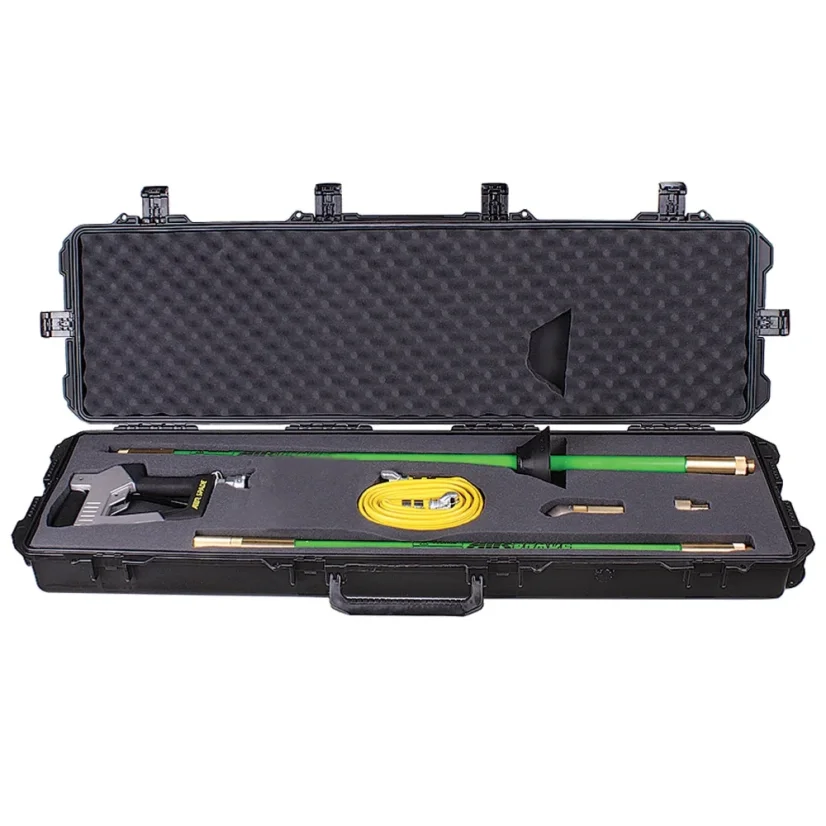

Package contents

• AirSpade 4000 handle with pressure gauge

• Fiberglass barrel approx. 1.2 m

• Fiberglass extension approx. 0.9 m

• Supersonic nozzle

• 45° adapter

• Air hose approx. 3 m

• Transport case
