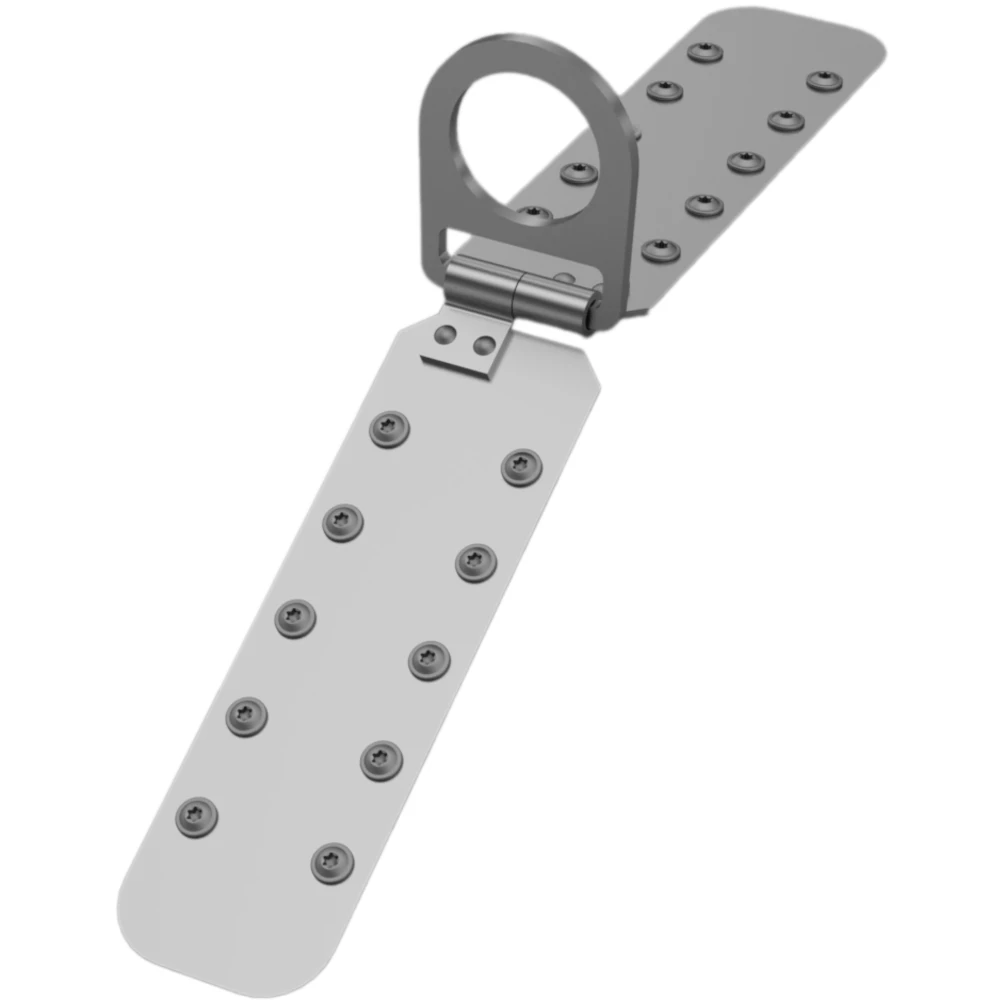

SKYLOTEC WOODFIX TYPE 60 anchor point
Country of origin: GermanyFor 1 user || Installation into wood using structural screws || Stainless steel construction
SKYLOTEC WOODFIX TYPE 60 is a fixed anchor point designed for fall protection when working at height on wooden structures. It serves as a permanent anchor point installed directly into a wooden substrate.

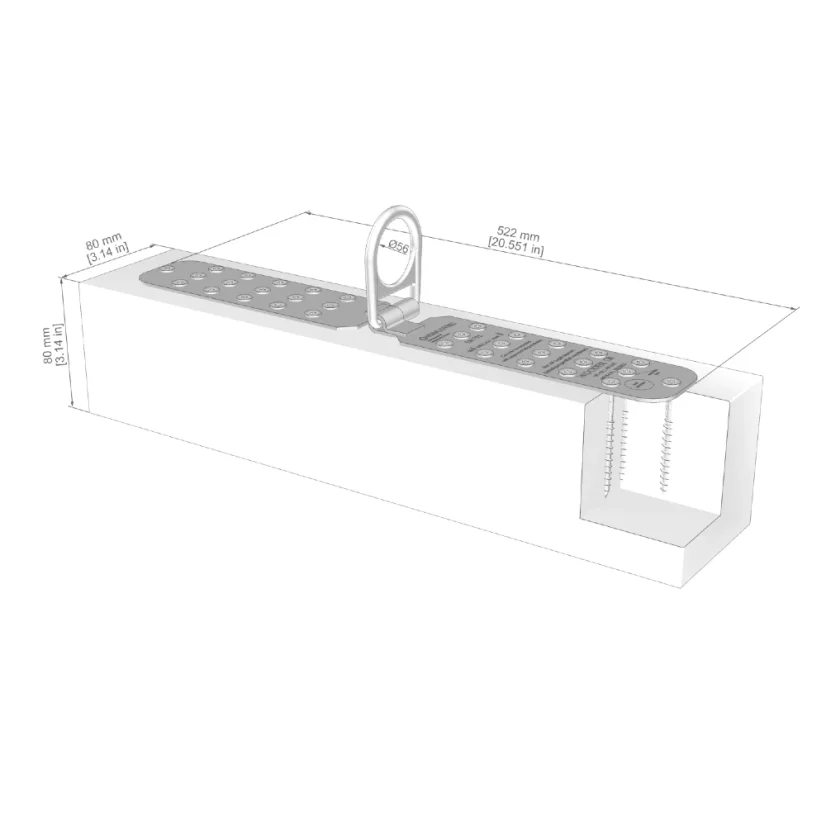

The anchor point is specifically designed for installation into wooden beams and is mounted using structural wood screws, allowing fast and secure installation.
Its compact design makes it suitable for applications with limited space. It is intended for installation into beams with a minimum cross-section of 80 × 100 mm.
The stainless steel construction ensures high corrosion resistance and long service life.
The device is designed as a fall arrest anchor point and is intended for use by one person.
The anchor point complies with EN 795 type A, CEN/TS 16415 and is certified according to ETA-21/1069.
Number of users: 1
Type: fixed anchor point
Material: stainless steel
Substrate: wood
Installation: structural wood screws

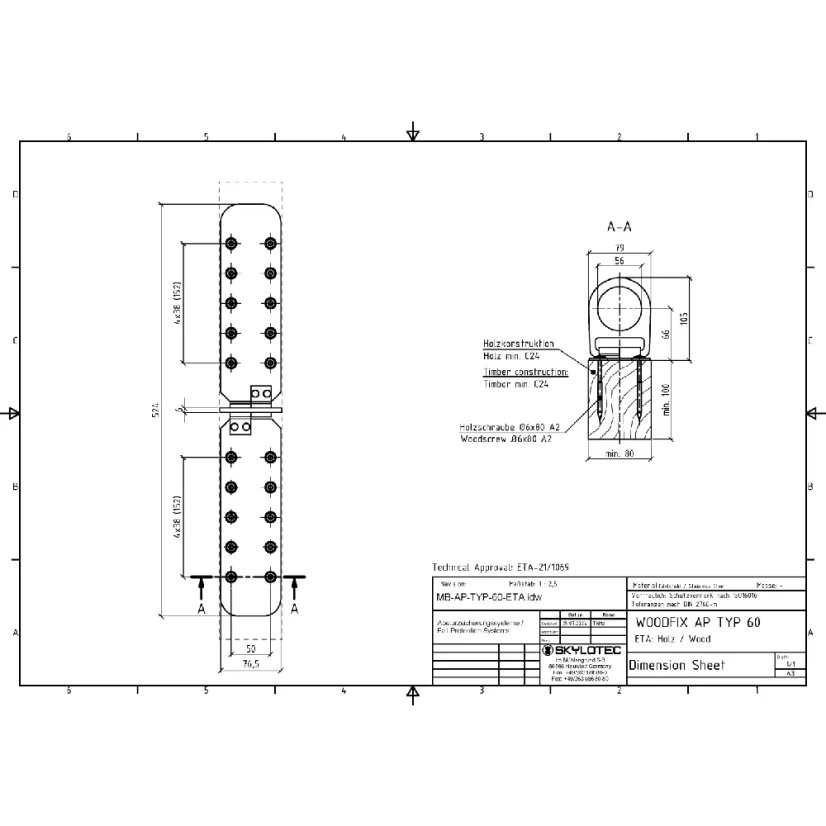

Min. beam cross-section: 80 × 100 mm
Base length: 530 mm
Base width: 77 mm
Height: 77 mm
Weight: 1.19 kg
Maximum load: 500 kg
Application: fall protection, wooden structures
| Article MPN | AP-TYP-60 |
|---|---|
| Certification | CEN/TS 16415 , EN 795:2012/A , ETA-21/1069 |
| Weight | 1,19 kg |
| Material | steel |
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
