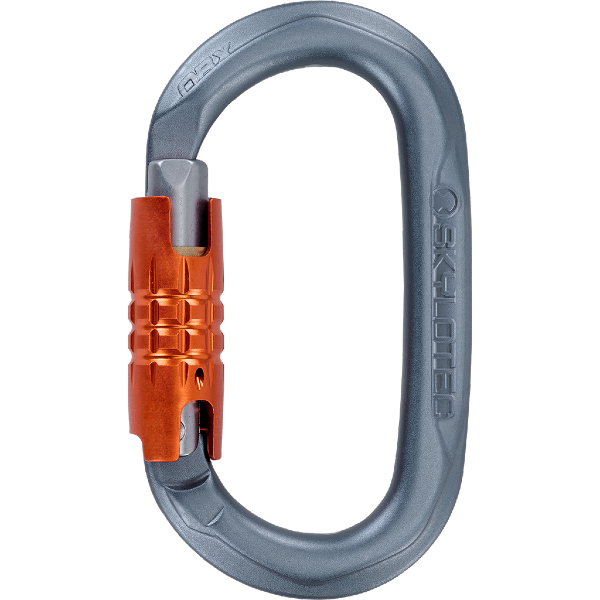

SKYLOTEC OBX TG carabiner
Country of origin: Italy
Article MPN: H-400-TG
MBS 24 kN || Weight 80 g || Gate opening 22 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
SKYLOTEC OBX TG is an oval aluminium carabiner with an automatic Trilock locking system. The oval shape helps keep attached devices and the rope in the correct position, making it suitable for pulleys, rope clamps, fall arresters and other equipment with a wider cross-section.
Reinforced contact surfaces improve rope running and increase wear resistance. The ergonomic shape makes handling easier, while the Keylock gate reduces unwanted snagging when clipping or unclipping the carabiner.
Technical parameters
- Type: locking carabiner
- Shape: oval
- Locking system: Trilock
- Gate: Keylock
- Material: aluminium
- Construction: hot forged
- Major axis strength: 24 kN
- Minor axis strength: 12 kN
- Gate opening: 22 mm
- Weight: 80 g
- Dimensions: 112 × 65 mm
- Temperature range: -30 °C to +50 °C
- Service life: max. 30 years
- Certification: EN 362:2004/B, EN 12275:2013/B, UIAA
- Colour: grey / orange
Specifications
| Article MPN | H-400-TG |
|---|---|
| Certification | EN 362:2004/B , EN 12275:2013/B |
| Weight | 0,08 kg |
| Material | dural |
| Breaking load (MBS) | 24 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Minor Axis) | 24 kN |
| MBS (Major Axis) | 10 kN |
| Dimensions | 112,4 x 65,5 mm |
| Gate opening | 22 mm |
| Lifespan | 30 years |
Manufacturer/Importer information
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
| info@skylotec.com |
Download
SKYLOTEC OBX TG product sheet (pdf, 804.3 kB)
SKYLOTEC OBX TG declaration of conformity (pdf, 428.5 kB)
