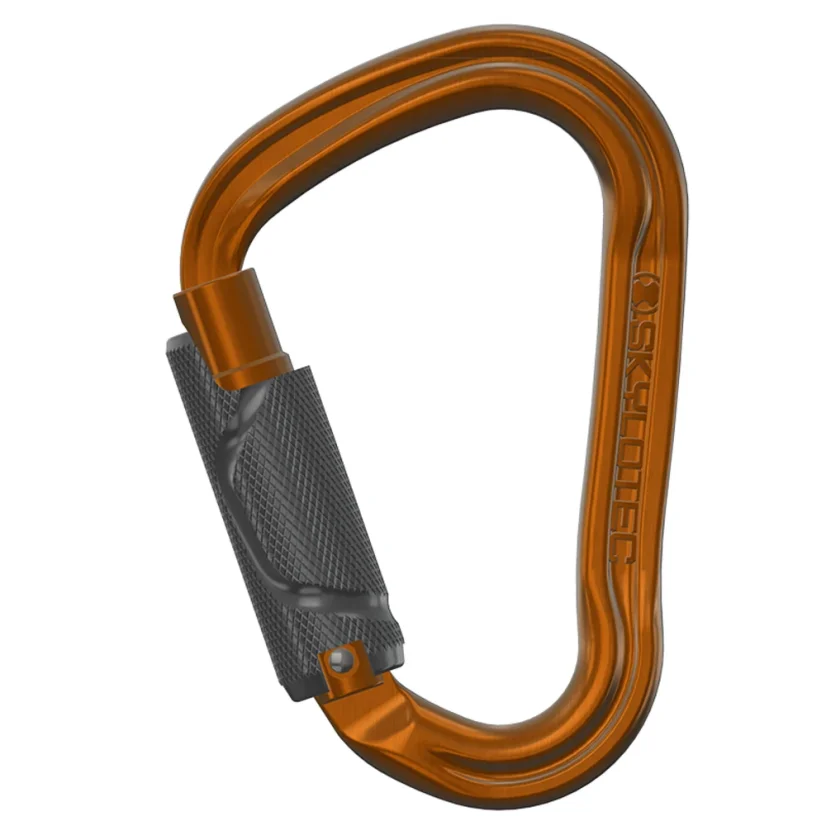

SKYLOTEC HMS DOUBLE TRI 2.0 carabiner
Article MPN: H-206
Unique 180° gate rotation || MBS 25 kN || Weight 85 g || Gate opening 24 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
The HMS carabiner with a patented 180° double gate allows the gate to rotate in two directions, making it equally easy to use for both left- and right-handed users.
- Wide Apex: Offers plenty of space for equipment (e.g., ropes, slings, etc.).
- Patented Double Gate: Can be used by both left- and right-handed users.
- I-profile Body: Optimizes the strength-to-weight ratio.
- Enlarged Cross-Section: In areas exposed to abrasion (apex and base).
- Compact Key-Lock Nose: Large opening width for quick and easy attachment/removal of anchor points.
Specifications:
| Specification | Details |
|---|---|
| Art.Nr. | H-206C |
| Application Areas | Arborists, Rope access |
| Carabiner Type | Type B (EN 362:2004), Type H (EN 12275:2013) |
| Form Fit | Hook-Nose |
| Gate Opening | 24 mm |
| Locking Mechanism | Double Trilock |
| MBS Gate | 2 kN |
| MBS Gate Open | 7 kN |
| MBS Major Axis | 25 kN |
| MBS Minor Axis | 7 kN |
| Maximum Lifetime | 30 years |
| Working Load Limit | 250 kg |
Specifications
| Article MPN | H-206 |
|---|---|
| Certification | EN 362 , EN 12275 |
| Weight | 85 g |
| Material | dural |
| Breaking load (MBS) | 25 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 7 kN |
| Working load (WLL) | 250 kg |
| Gate opening | 24 mm |
Manufacturer/Importer information
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
| info@skylotec.com |
Download
Instructions for use SKYLOTEC HMS DOUBLE TRI 2.0 (pdf, 2.2 MB)
EU Declaration of Conformity SKYLOTEC HMS DOUBLE TRI 2.0 (pdf, 258.2 kB)
