SKYLOTEC DOUBLE O TRI 2.0 carabiner
Article MPN: H-209
Unique 180° lock rotation || MBS 25 kN || Weight 90 g || Gate opening 20 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

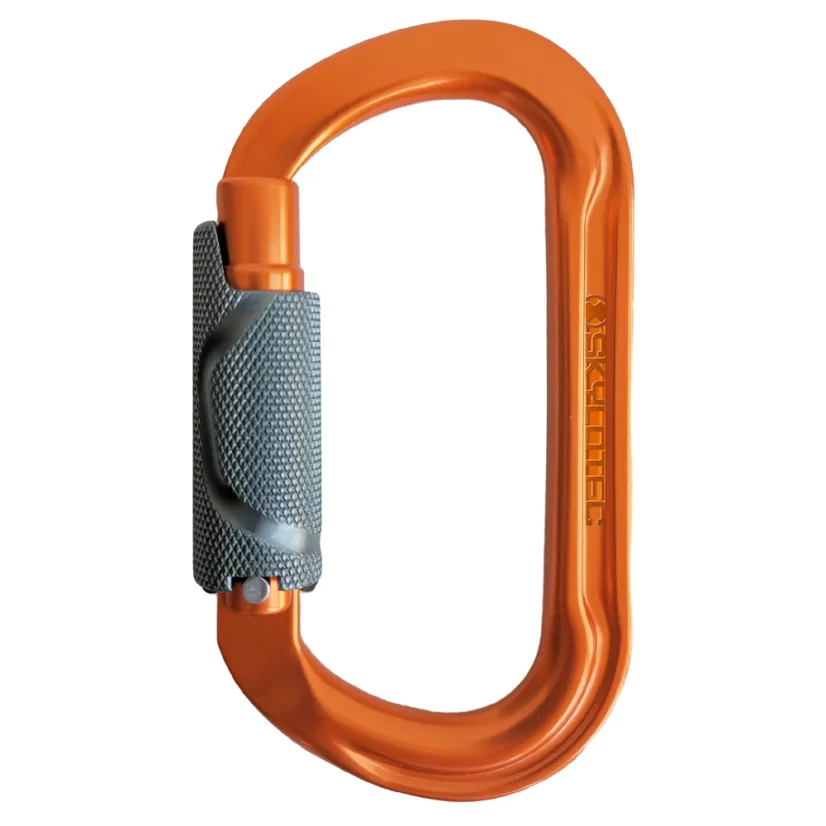

The HMS carabiner with a patented 180° double gate allows the gate to rotate in two directions, making it equally easy to use for both left- and right-handed users.
| Specification | Details |
|---|---|
| Application areas | Arborists, Rope access |
| Carabiner type | Type B (EN 12275:2013), Type B (EN 362:2004) |
| Gate opening | 20 mm |
| Locking mechanism | Double Trilock |
| MBS Gate Open | 7 kN |
| MBS Major Axis | 25 kN |
| MBS Minor Axis | 7 kN |
| Maximum lifetime | 30 years |
Specifications
| Article MPN | H-209 |
|---|---|
| Certification | EN 362 , EN 12275 |
| Weight | 90 g |
| Material | dural |
| Breaking load (MBS) | 25 kN |
| MBS (Gate Open) | 7 kN |
| MBS (Major Axis) | 7 kN |
| Gate opening | 20 mm |
Manufacturer/Importer information
| Manufacturing company | SKYLOTEC GmbH |
|---|---|
| Address | Im Mühlengrund 6-8, 56566 Neuwied - Germany |
| info@skylotec.com |
Download
SKYLOTEC DOUBLE O TRI 2.0 manual (pdf, 2.2 MB)
SKYLOTEC DOUBLE O TRI 2.0 declaration of conformity (pdf, 253.4 kB)
