Maximum load (MBS): 36 KN
Maximum sensed load value: 20 kN
Accuracy: +/- 2%
Length: 203 mm
Width: 53 mm
Weight: 400 g
Certification: CE

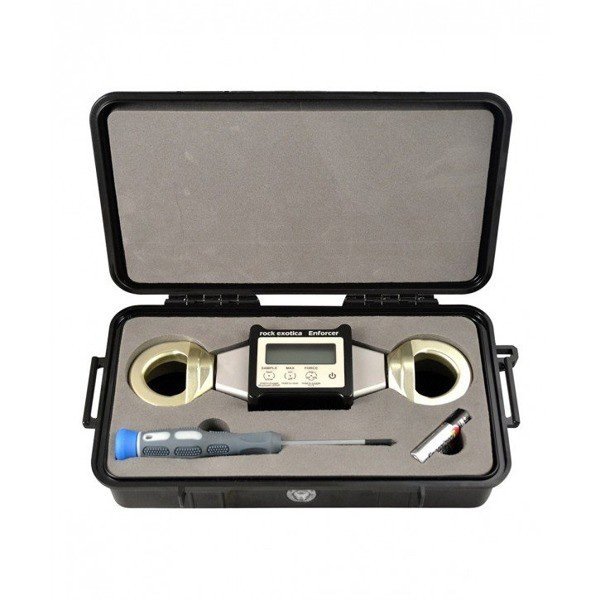

Compact aluminum force meter for loads up to 20 kN.
It is shopen to measure static and dynamic loads .
Connection points with a swivel eliminate unwanted torsional forces.
Not intended for connection with steel couplings!

Measures force in kg, lbf and kN.
Easy connection via bluetooth to mobile devices
(iPhone, iPad, ...) via an originally developed application.
Record and generate graphs of measurements.
2 modes of use:
SLOW for monitoring
FAST for drop tests

Thanks to a special application, you can precisely monitor static forces
and record dynamic events with a record of 500 values per second.
The chart can be viewed directly on the iPhone, but also sent
as an email attachment for further analysis. It is also possible to store data directly
to cloud services such as Dropbox and Google Drive.
