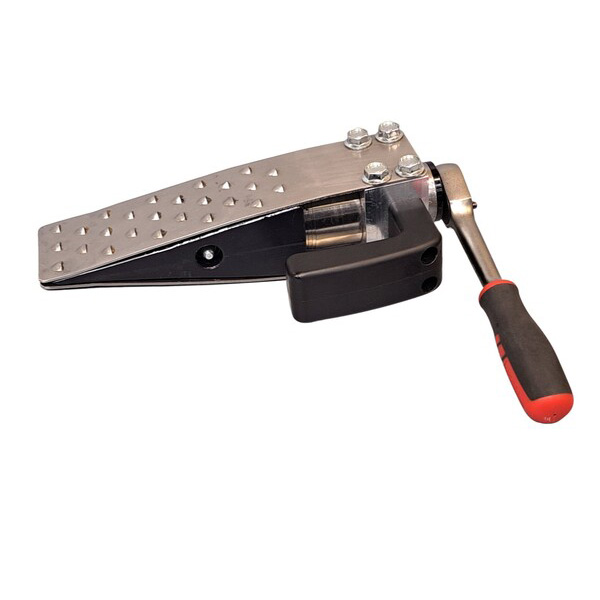

Mechanical wedge EDER TITAN 50 - 15 t with ratchet
length 240 mm || weight 1.6 kg || lifting force 15 t (at approx. 300 Nm) || ratchet type: 3/8" square || including ratchet
Mechanical wedge EDER TITAN 50 - 15 t with ratchet
Length: 240 mm
Width: 72 mm
Height (with handle): 118 mm
Weight: 1.6 kg
Ratchet type: 3/8" square
Length of retractable wedge: 158 mm
Width of retractable wedge: 60 mm
Height of retractable wedge: 50 mm
Thread pitch: 5 mm
Max. lifting force: 15 t (at approx. 300 Nm)
Material: steel, aluminum, plastic
- a great helper in logging
- weight only 1.6 kg!
- thanks to its low weight, it can also be used for tree climbing
- strong reverse teeth of 1.5 mm height - retaining protrusions against jumping out of the cut
- delivered including a ratchet

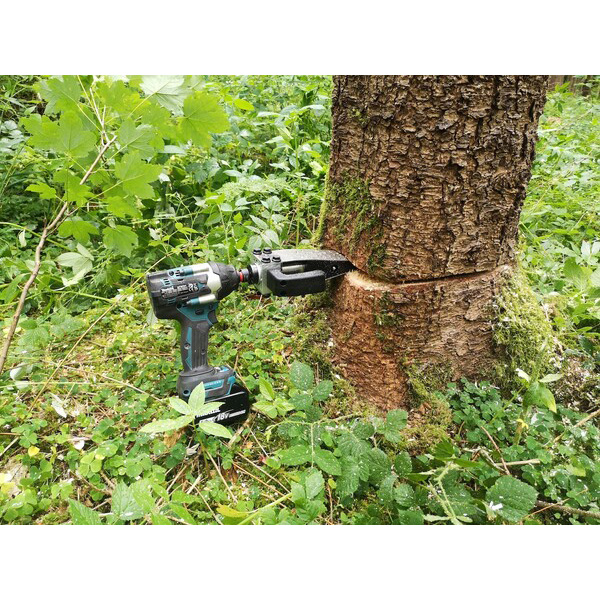

- the possibility of using an impact wrench
Maximum torque of the impact wrench
TITAN 50: 750 Nm
TITAN 80: 1300 Nm
The maximum lifting force is achieved at a torque of approx. 300 Nm - equivalent to 70 kg on the ratchet.
| Manufacturing company | Eder Maschinenbau GmbH |
|---|---|
| Address | Schweigerstraße 6, 38302 Wolfenbüttel, Germany |
| info@eder-maschinenbau.de |
EDER - forestry winches of the highest quality - Made in Germany
What is typical for EDER? Pure machines. For us, EDER = QUALITY. The entire production takes place in Germany, Wolfenbüttel. And why do we offer their products to you? Because quality and simple, functional design are exactly what we appreciate about their products. It’s a typical old-school approach, where everything is made to last as long as possible. And EDER is one of the companies that still adheres to this principle. We know it because we work with EDER products, especially the winches!
