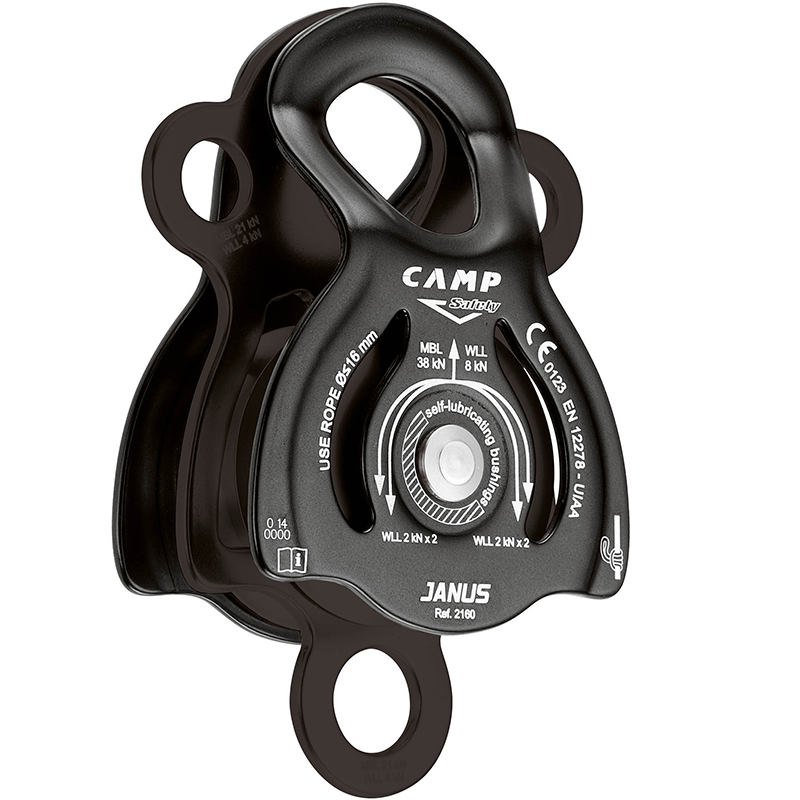

Large double pulley CAMP JANUS Black
MBS 38 kN || WLL 8 kN || Efficiency 90% || Weight: 405 g || Rope diameter up to 16 mm
CAMP JANUS is a high-strength, multifunctional double pulley with large holes,
which has been optimized for hoist assembly and rescue operations.
This presents a main attachment hole that accommodates three carabiners, two secondary
holes on the sides for positioning and a large central connection hole.
Self-lubricating bearings are suitable for lighter pulley loads.
Prussians can be installed on both sides.
Color: red, gray center
Material: duralumin (body and rolls), stainless steel (axis)
Rope diameter: max. 16 mm
Weight: 405 g
Efficiency: 90%
Bearing: self-lubricating sliding
Limit load (MBS): 3800 daN (kg)
Max. work load (MWL): 200 daN (kg) x 2 x 2 = 400 daN (kg)
Size: 147 x 100 x 49mm
Carabiner hole: 32 mm, 2 x 14 mm, 19 mm
Certification: EN 12278 CE
| Article MPN | 216003 |
|---|---|
| Color | black |
| Certification | EN 12278 |
| Weight | 405 g |
| Material | dural , stainless steel |
| Breaking load (MBS) | 38 kN |
| Working load (WLL) | 8 kN |
| Rope Diameter | 5/8" |
| Efficiency | 90% |
| Manufacturing company | CAMP Safety s.r.l. |
|---|---|
| Address | Via Nazionale 93, 38042 Calceranica al Lago (TN), Italy |
