KRATOS SAFETY FA6000100 Anchor tripod
Height 1.15 - 2.15 m || Diameter of the hole under the tripod 1.08 - 1.62 m || Load capacity 500 kg on the head / 250 kg on the leg || Weight 14.3 kg || Anchor point strength 12 kN || ATEX zone 1
This robust and portable tripod system is ideal for securing workers when working in confined spaces and in locations where mobile anchoring and safety equipment are required. The tripod is also suitable for use in ATEX environments (zone 1), meaning areas where an explosive atmosphere formed by a mixture of air and flammable gases or vapors may occasionally occur during normal operation.
- suitable for use in ATEX atmosphere (zone 1)
- two mini pulleys mounted on the tripod head in line with the main leg for cable routing
- two auxiliary eye bolts as anchor points
- cast aluminum alloy head, aluminum legs
- steel support shoes with rubber sole to increase friction and provide greater stability
- each tripod is equipped with an integrated fixture for attaching winches FA 60 003 20/20S and FA 60 003 30/30S

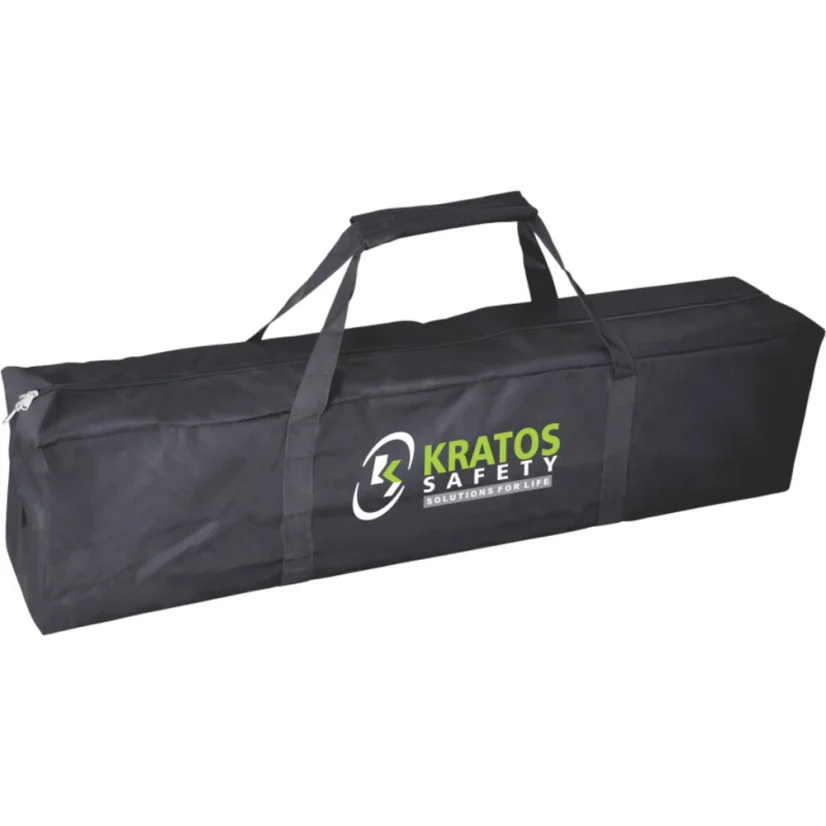

- each tripod is supplied with a transport bag
Technical information:
Compliance with regulations: EN 795:2012 Type B, Machinery Directive, EN 1808
Adjustable height: from 1.15 m to 2.15 m
Diameter of the hole under the tripod: from 1.08 m to 1.62 m
Weight: 14.3 kg
Maximum load capacity: 500 kg under head / 250 kg on leg
Strength of anchorage point: > 12 kN
| Article MPN | I4032 |
|---|---|
| Certification | EN 795/B , EN 1808 , EN / IEC 60079-10-1 |
| Weight | 14,3 kg |
| Load capacity | 500 kg |
| Resistance | 12 kN |
| Diameter of the hole under the tripod | 1,08 - 1,62 m |
| Lifespan | Unlimited time |
| Manufacturing company | Kratos Safety SAS |
|---|---|
| Address | 689, Chemin du Buclay, 38540 HEYRIEUX, FRANCE |
| info@kratossafety.com |
