HEXARING – Friction Ring for Arborists

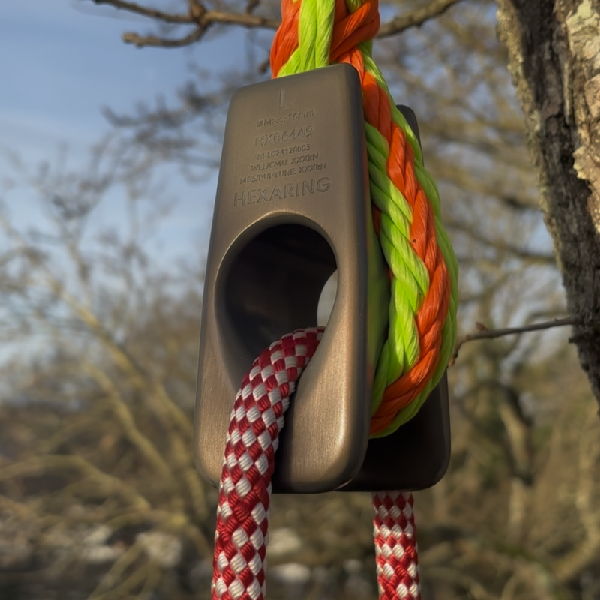

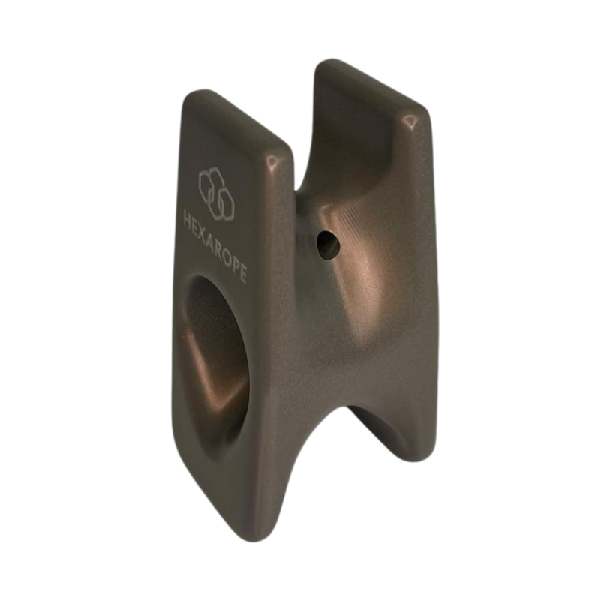

The HEXARING is a low-friction aluminum ring, purpose-built for controlled lowering of cut tree sections. Unlike traditional metal rings borrowed from the marine industry, HEXARING was engineered specifically for arborist use – offering superior rope compatibility, gentle handling, and easy field operation.

✔ Smooth rope flow and stable load control
✔ Compatible with single eye, chainette, and whoopie slings
✔ Available in three sizes (M, L, XL) for ropes up to 20 mm
✔ High strength – MBS up to 400 kN
✔ Lightweight, compact, and highly durable

Its optimized radius ensures minimal rope wear and balanced load distribution, making it the ideal tool for climbing professionals who demand reliability and low weight.

Note: Not certified as PPE. For use by trained and experienced personnel only.

Variant	Code	Rope Diameter	Dimensions (Ø × length)	Strength (MBS)	Working Load Limit (WLL)	Weight (approx.)

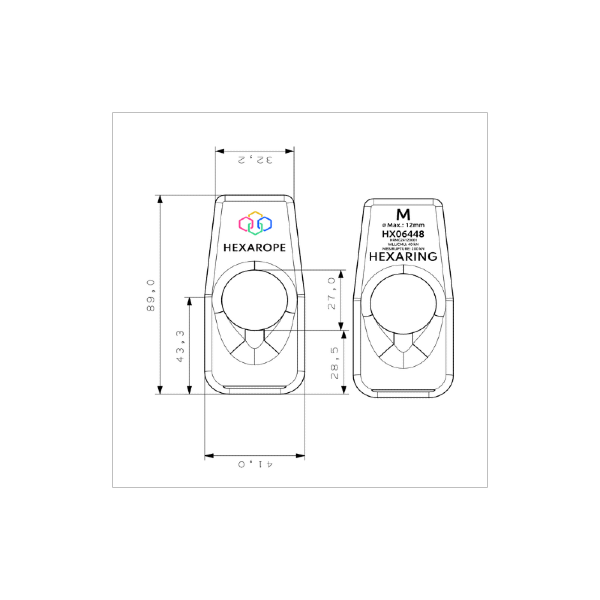

HEXARING M	HX06448	up to 12 mm	Ø 48 × 89 mm	200 kN	40 kN	approx. 120 g
HEXARING L	HX06449	up to 16 mm	Ø 64 × 115 mm	300 kN	60 kN	approx. 220 g
HEXARING XL	HX06450	up to 20 mm	Ø 80 × 130 mm	400 kN	80 kN	approx. 360 g
