GEFA PA STRETCHABLE 10 T dynamic bracing 50 m
Article MPN: G-02.2.07.026.050.3
Diameter 30 mm || Elongation < 20% || Weight 29.2 kg / 100 m
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

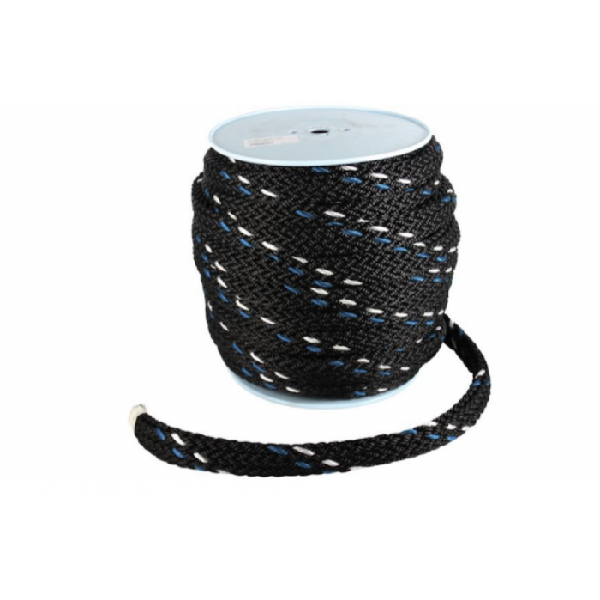

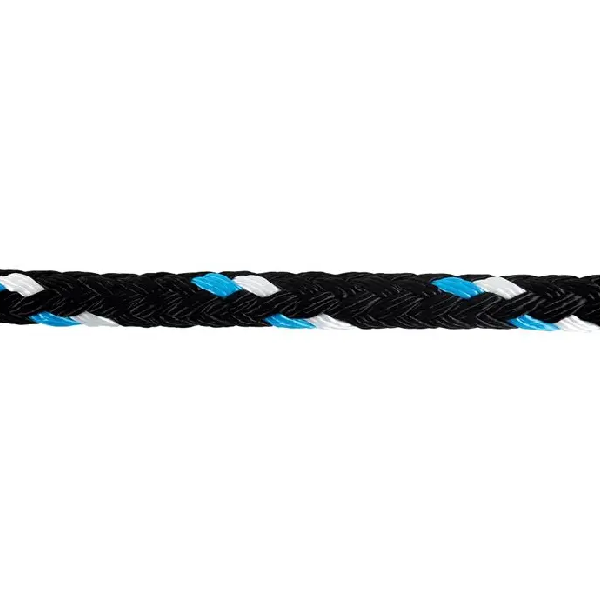

Certified dynamic rope with a load capacity of up to 10 t.
-
high-quality elastic polyamide
-

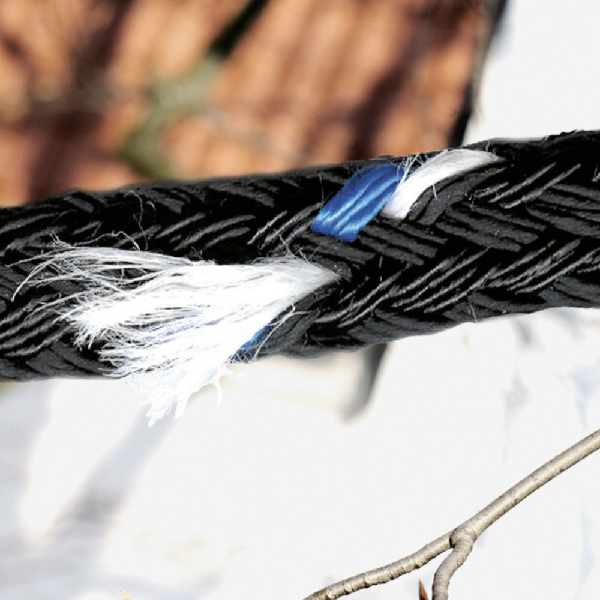

blue and white control strand for overload indication
Material: polyamide (PA)
Diameter: 30 mm
Construction: 20-strand
Elongation: 20%
Certified load capacity: 130 kN
Maximum load capacity: 142.69 kN
Weight: 29.2 kg / 100 m
Guaranteed lifetime load capacity: 10 t
Service life: 8 years
Certification: DIN EN ISO 2307
Specifications
| Article MPN | G-02.2.07.026.050.3 |
|---|---|
| Certification | DIN EN ISO 2307 |
| Length | 50 m |
| Weight | 29,2 kg / 100 m |
| Material | polyamid |
| Breaking load (MBS) | 142,69 kN |
| Load capacity | 10 t |
| Rope Diameter | 30 mm |
| Elongation | 20% |
| Lifespan | 8 years |
Manufacturer/Importer information
| Manufacturing company | GEFA Produkte Fabrik GmbH & Co. KG |
|---|---|
| Address | Wiesentalstraße 35, 73642 Welzheim, Germany |
| info@gefa.de |
Download
GEFA - manual, handover protocol, registration sheet (pdf, 3.8 MB)
Protocol on GEFA PA 10 t Stretchable material (pdf, 4.7 MB)

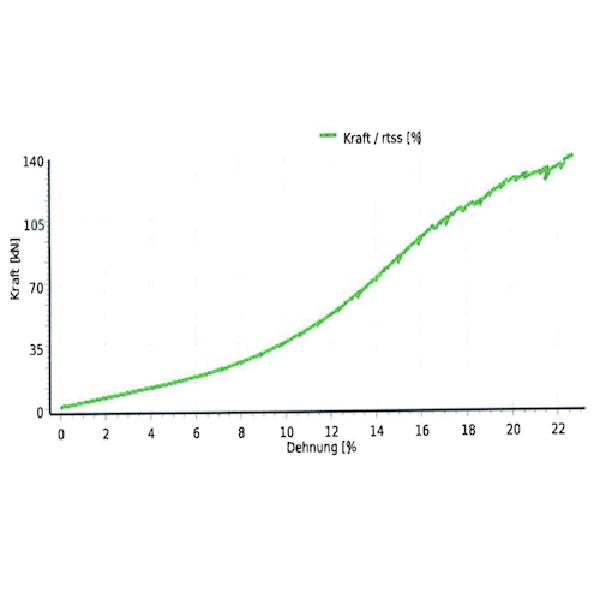

GEFA PA 10 t Stretchable test report (pdf, 136.8 kB)
