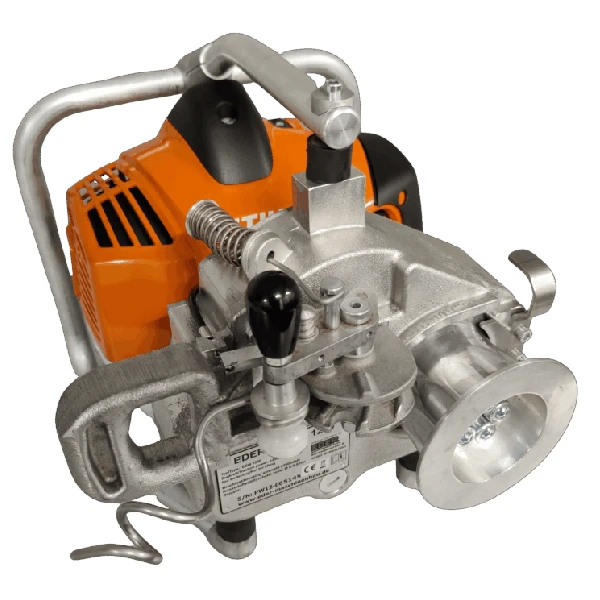

The EDER Winch 1400 S is a compact, powerful portable winch designed to deliver reliable pull, hold and release performance using synthetic rope of any length. Powered by a robust engine (e.g. 2.8 kW STIHL), it provides high tractive capacity and can be controlled from a safe distance. Built for durability, it is suitable for forestry, material handling, and demanding outdoor applications where maximum performance and absolute reliability are required.

Key features and specifications:

• Portable motor capstan winch for demanding traction tasks

• Powerful engine (approx. 2.8 kW STIHL) for strong pull capabilities

• Compact, rugged design for tough terrain and remote work environments

• Suitable for use with synthetic rope of any length

• Remote control operation for enhanced operator safety

• Can operate in multiple orientations thanks to engine design

Technical specifications:

• Maximum pull capacity: 1400 kg (direct pull)

• Pull capacity with deflection pulley: up to 2800 kg

• Rope speed: approx. 13 m/min

• Engine: STIHL two-stroke ~ 2.8 kW

• Weight: approx. 13.6 kg

• Recommended rope: Ø 8–10 mm

• Automatic rope brake: yes

• Centrifugal clutch: yes

• Dimensions (approx.): 33 × 34 × 33 cm (W × H × D)

Applications:
Ideal for forestry work, skidding, material recovery and outdoor traction tasks where a robust and reliable portable winch is needed.
