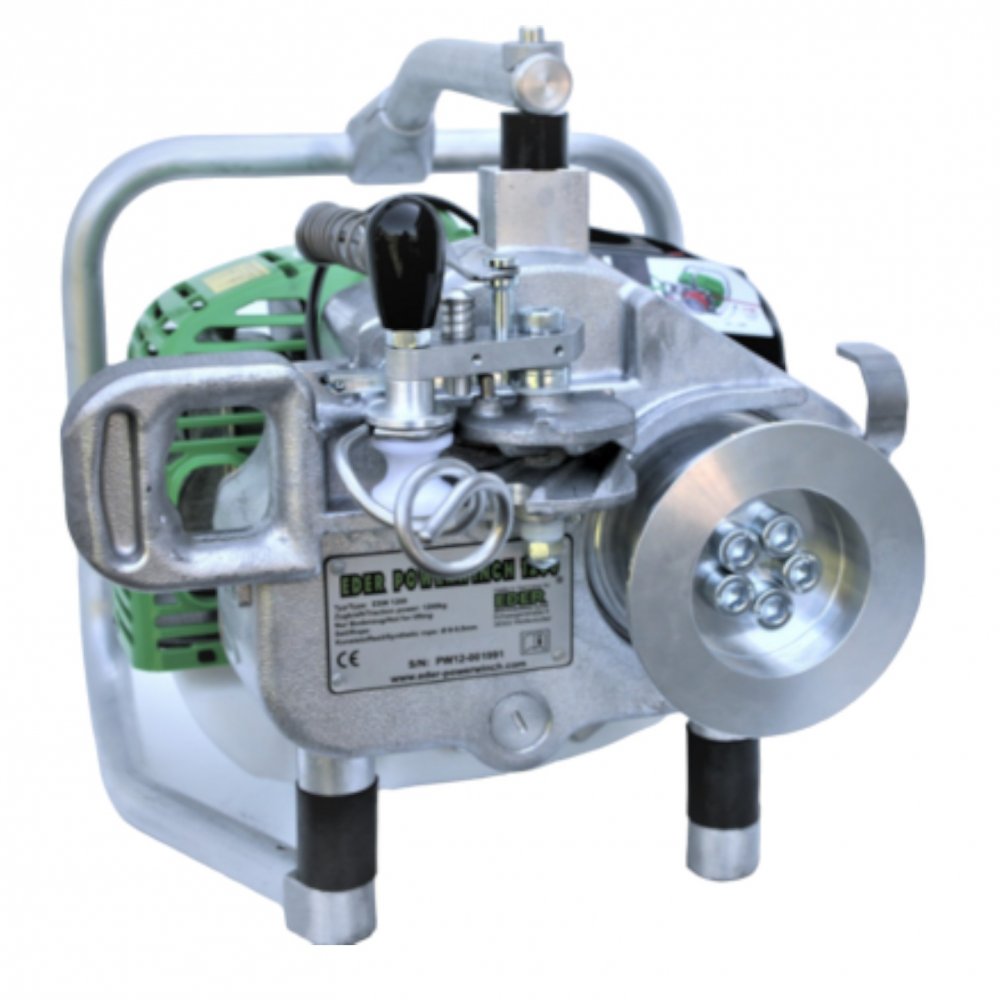

EDER WINCH 1200 motor winch
EDER universal winch | Traction force 1200 kg | centrifugal clutch | rope brake | Weight 13 kg | 14 m/min | we provide SERVICE
EDER WINCH 1200 motor winch
Traction force: 1200 kg
Pull force with pulley:
Winding speed: 14 m/min
Winding speed with pulley: 7 m/min
Weight: 13 kg
Dimensions: 37 cm length x 33 cm width x 34 cm height
Mechanical advantage: 1:160
Rope: 8 mm - 9.5 mm
Construction strength : 2500 daN
The versatile EDER winch 1200 is characterized by low weight, high pulling power of up to 1200 kg and a low price.
NOTE: We also provide a complete service for all EDER winches .
It is powered by a 2-stroke engine that can work in any position.
It can be operated using a light synthetic rope of any length.
The winch is intended for control from a safe zone.
The rope brake ensures the safety of operation - when the rope is released, the winch stops because the rope is secured by the brake.
The brake prevents the load from sliding back unintentionally.
Main advantages of EDER WINCH winches
- Centrifugal coupling - you will not burn the rope with a constantly rotating drum, as is often the case with conventional forest winch solutions,
the centrifugal clutch allows the spindle to stop once the user releases the throttle
- Rope brake - the towed load is safely secured all the time - if you let go of the rope, the gas will be released and the brake activated,
which tightly grips the rope. Even with the maximum load, the load remains stable - there is no danger that, for example, the towed log will slide down the slope
- Motor protection frame - thanks to it, the device is protected against damage in the event of a rollover
- All EDER winches are certified by German certification authorities and are designed and manufactured to meet all safety standards.
Other advantages of EDER WINCH 400, 1200, 1800 winches
- 360 ° working position - thanks to the Active two-stroke engine, you do not have to deal with the position of the device,
the winch motor will work in any position while rotating 360° in all axes
- No need to change the oil in the engine (2-stroke engine), the fuel is a standard mixture of Petrol:2T oil in a ratio of 50:1
Uses: Forestry, Rescue Operations, Hunting, Construction, Obstacle Removal
| Technical Data | Winch 1800 | Winch 1200 | Winch 400 |
|---|---|---|---|
| with Active engine (1200, 400) | |||
| Type | Air-cooled 2-stroke engine | ||
| Power [kW/HP] | 3.3 / 4.5 | 3.3 / 4.5 | 3.3 / 4.5 |
| Displacement [cm³] | 62 | 62 | 62 |
| Engine speed [1/min] | max. 10400 | max. 10400 | max. 10400 |
| Carburetor | Membrane carburetor type Walbro | ||
| Fuel tank capacity [l] | 1.1 | ||
| Clutch | Centrifugal clutch | ||
| Throttle lever | With half-throttle position | ||
| Noise level [dB(A)] | 115 | ||
| Manufacturing company | Eder Maschinenbau GmbH |
|---|---|
| Address | Schweigerstraße 6, 38302 Wolfenbüttel, Germany |
| info@eder-maschinenbau.de |
EDER - forestry winches of the highest quality - Made in Germany
What is typical for EDER? Pure machines. For us, EDER = QUALITY. The entire production takes place in Germany, Wolfenbüttel. And why do we offer their products to you? Because quality and simple, functional design are exactly what we appreciate about their products. It’s a typical old-school approach, where everything is made to last as long as possible. And EDER is one of the companies that still adheres to this principle. We know it because we work with EDER products, especially the winches!
