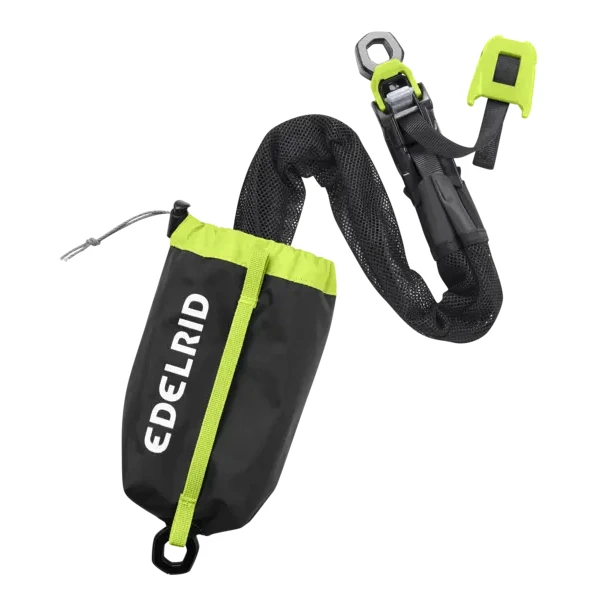

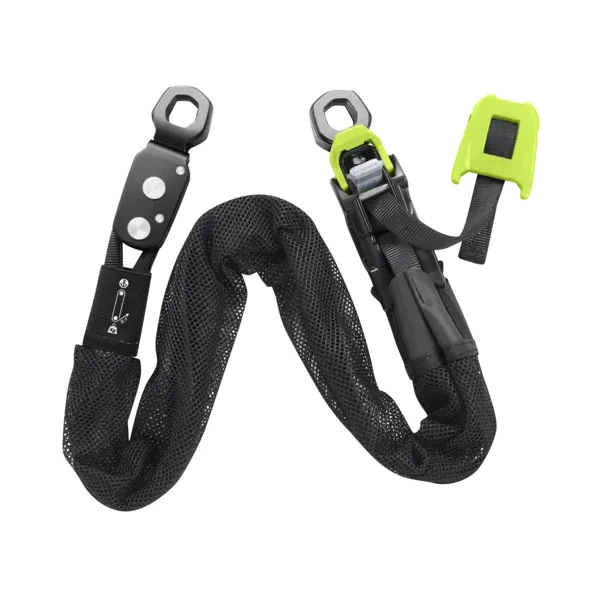

KAA is a pre-rigged haul system designed for tensioning systems, personnel handling during rescue, and workplace stabilization. Thanks to EN 354 certification, it can also be used as a positioning or restraint system (open/closed) and for controlled lowering. The strap-based construction ensures very compact dimensions and low weight. The system offers mechanical advantage 4:1 or 5:1 depending on configuration and high efficiency of 91 %. It is supplied as a compact unit ready for immediate use. A swivel is located at both ends to prevent twisting. The control lever on the pull strap facilitates hauling and also allows controlled lowering. Available in lengths 0.8 / 1.5 / 4 m.

Main features:

• Pre-rigged haul system for tensioning, rescue, and positioning
• EN 354 certification allows use as a restraint system
• Strap-based construction – very compact and lightweight solution
• Mechanical advantage 4:1 or 5:1
• High system efficiency (91 %)

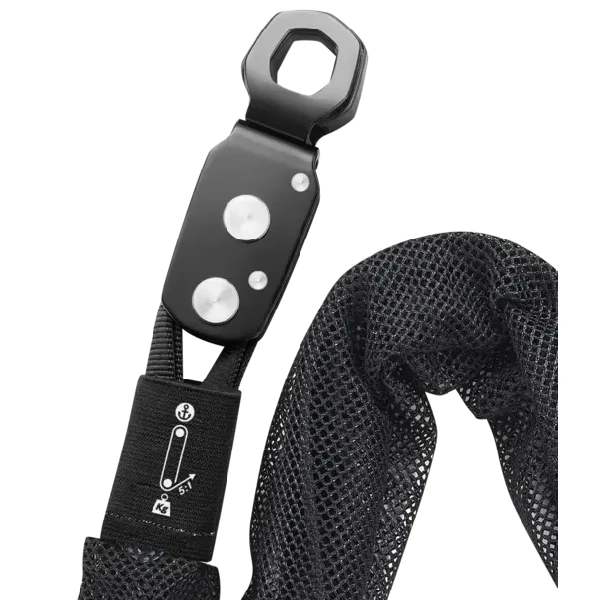

• Swivels at both ends to prevent twisting

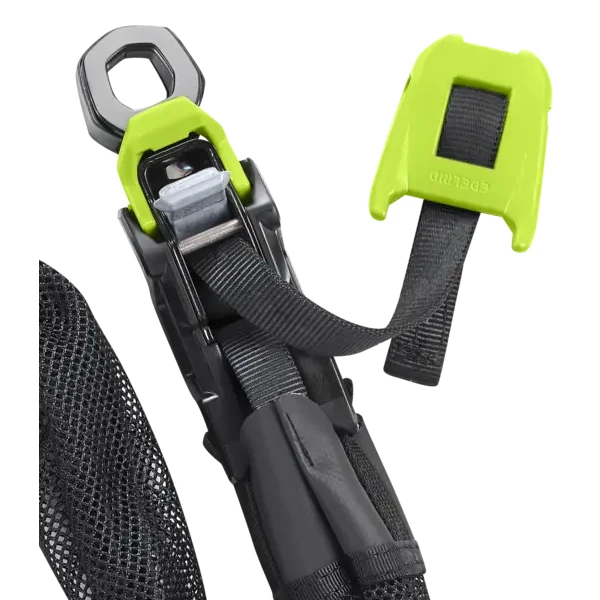

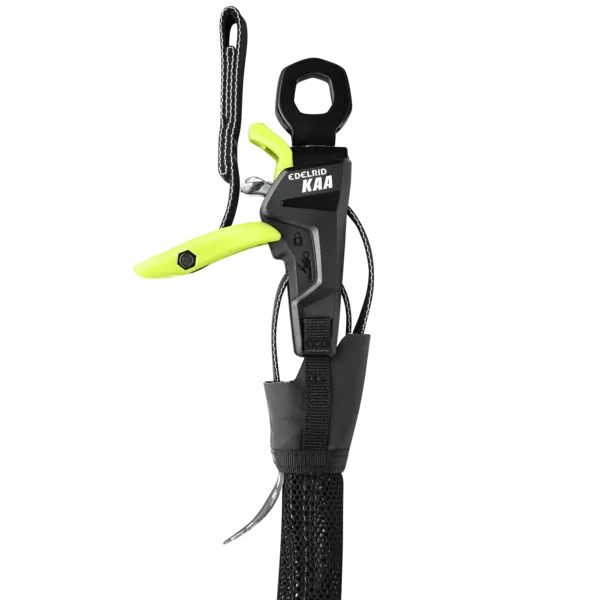

• Control lever for easier hauling and controlled lowering
• Ready for immediate use without assembly
• 4 m version suitable for stretcher handling
• Integrated NFC chip

Technical specifications:

• Minimum breaking strength (MBS): 22 kN
• Certification: EN 354
• Lengths: 0.8 m / 1.5 m / 4 m
• Mechanical advantage: 4:1 / 5:1
• Efficiency: 91 %
• Construction: strap-based
• Manufactured in: Germany

Kit contents:

• KAA haul system
• Integrated swivels at both ends
