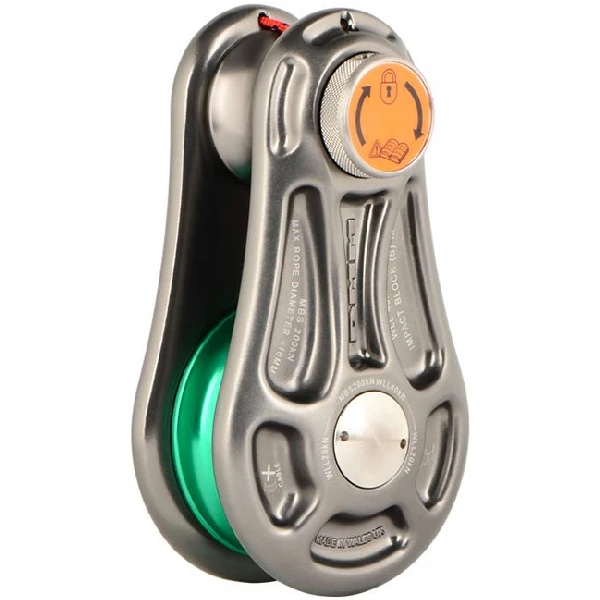

DMM IMPACT BLOCK - S rigging pulley
Country of origin: United Kingdom
Article MPN: IMB-S
MBS 200 kN || WLL 40 kN || Weight 1.86 kg || Rope diameter 16 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description
A pulley for handling loads, ideal for gradual felling of trees.
Designed for high loads (WLL 40 kN!).
Easy and safe to install and use.
High-quality material design for high resistance and long life.
Fastening with an anchor loop with the possibility of length adjustment.
Individual marking for pulley traceability.
Weight: 1.86 kg
Dimensions: 180 x 100 x 80 mm
Working load (WLL): 40 kN
Limit load (MBS): 200 kN
Max. rope diameter: 16 mm
Certification: EN12278:2007, NFPA 1983(2012 ED) Class G
Specifications
| Article MPN | IMB-S |
|---|---|
| Certification | EN 12278 , NFPA 1983 Pulley General Use |
| Weight | 1,86 kg |
| Material | dural , steel |
| Breaking load (MBS) | 200 kN |
| Working load (WLL) | 40 kN |
| Rope Diameter | 5/8" |
| Dimensions | 180 × 100 × 70 mm |
Manufacturer/Importer information
| Manufacturing company | DMM International Ltd. |
|---|---|
| Address | Y Bont Faen, Wales, United Kingdom |
| info@dmmwales.com |
