CAMP TETHYS PRO pulley
Country of origin: Italy
Article MPN: 2155
MBS 25 kN || WLL 6 kN || Efficiency 92% || Weight 90 g || Rope diameter up to 13 mm
Do you need advice?
Skyman = certified manufacturer
We splice ropes with a TÜV certificate
> 20 years in the industry
Products tested in the field!
More than just sales!
Service, PPE inspections, testing & trainings.
Showroom Brno
> 5000 products in stock.
Product Description

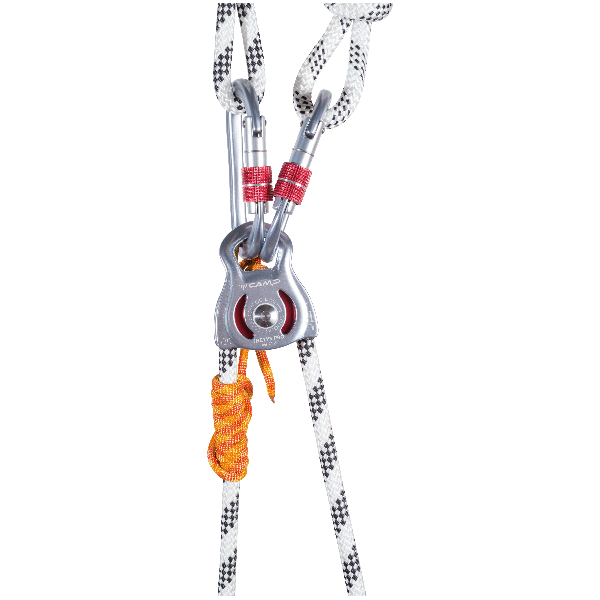

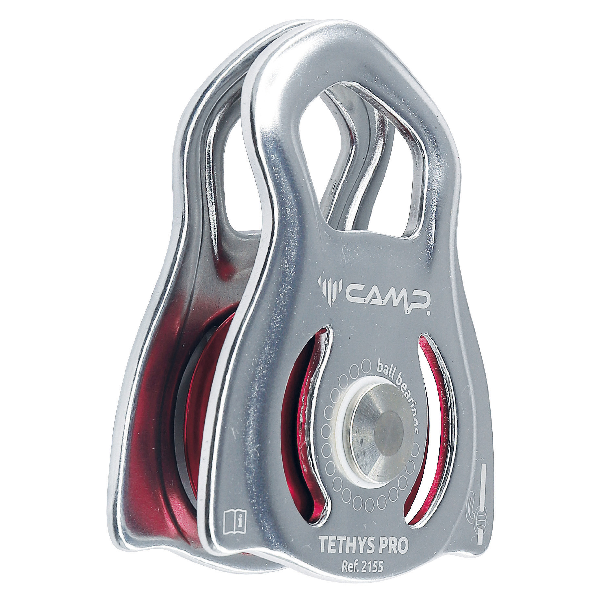

Lightweight aluminum pulley with rotating flanges and a large attachment point that fits two carabiners. Compatible with ropes up to 13 mm. Prusik-minding on both sides. Sealed ball bearings ensure high efficiency (92 %) and durability even under intensive use and at high speeds. Aluminum alloy body and sheave, stainless steel axle.
-
Weight: 90 g
-
Sheave diameter: 28 mm
-
For ropes up to 13 mm
-
Working load: 3 kN × 2 = 6 kN
-
Breaking load: 25 kN
-
Efficiency: 92 %
-
Certification: EN 12278, CE, EAC
Specifications
| Article MPN | 2155 |
|---|---|
| Certification | EN 12278 , CE , EAC |
| Weight | 90 g |
| Material | dural , stainless steel |
| Breaking load (MBS) | 25 kN |
| Working load (WLL) | 6 kN |
| Průměr | 28 mm |
| Rope Diameter | 13 mm |

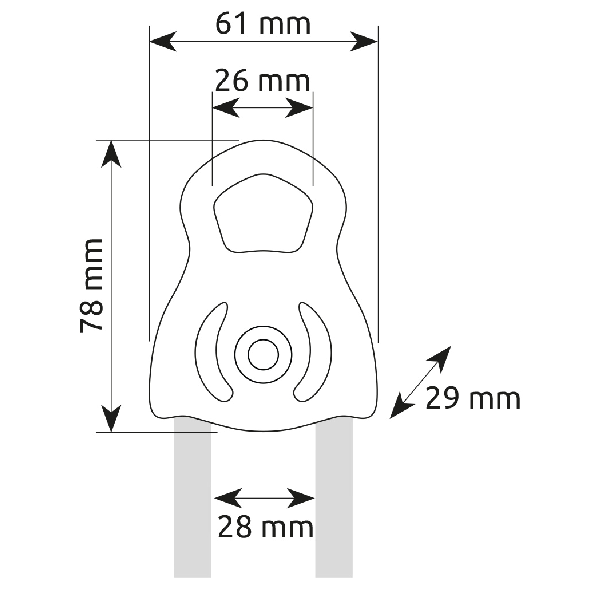

| Dimensions | 78 x 61 x 29 mm |
| Efficiency | 92% |
Manufacturer/Importer information
| Manufacturing company | CAMP Safety s.r.l. |
|---|---|
| Address | Via Nazionale 93, 38042 Calceranica al Lago (TN), Italy |
| info@camp.it |
Download
CAMP TETHYS PRO manual (pdf, 1.3 MB)
CAMP TETHYS PRO declaration of conformity (pdf, 359.7 kB)
CAMP TETHYS PRO product sheet (pdf, 286.3 kB)
