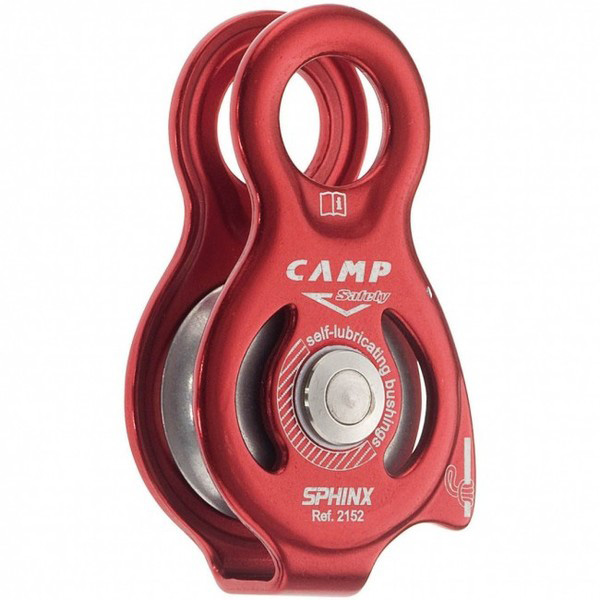

CAMP SPHINX pulley
Country of origin: ItalyMBS 25 kN || WLL 4 kN || Weight 95 g || Efficiency 80% || Rope diameter up to 13 mm
Compact, lightweight pulley with solid sides.
The SPHINX pulley is very easy to control and is comfortably worn on the harness.
The mounting hole is large enough to allow the full passage of a standard oval carabiner incl. the castle.
The self-lubricating bearing is ideal for handling under light loads.
It allows the prusik to be installed on one side, so it can be used to assemble the hoist.
Color: red, gray center
Material: duralumin (body and roll), stainless steel (axis)
Rope diameter: max. 13 mm
Weight: 95 g
Efficiency: 80%
Bearing: self-lubricating sliding
Limit load (MBS): 24 kN
Max. work load (MWL): 2 kN x 2 = 4 kN
Hole for carabiner: 19 mm
Size: 86 x 50 x 29mm
Certification: EN 12278 CE
| Article MPN | 2152 |
|---|---|
| Certification | EN 12278 |
| Weight | 95 g |
| Material | dural , stainless steel |
| Breaking load (MBS) | 24 kN |
| Working load (WLL) | 4 kN |
| Průměr | 28 mm |
| Rope Diameter | 13 mm |
| Dimensions | 86 x 50 x 29 mm |
| Efficiency | 80% |
| Manufacturing company | CAMP Safety s.r.l. |
|---|---|
| Address | Via Nazionale 93, 38042 Calceranica al Lago (TN), Italy |
