Article MPN: 2049

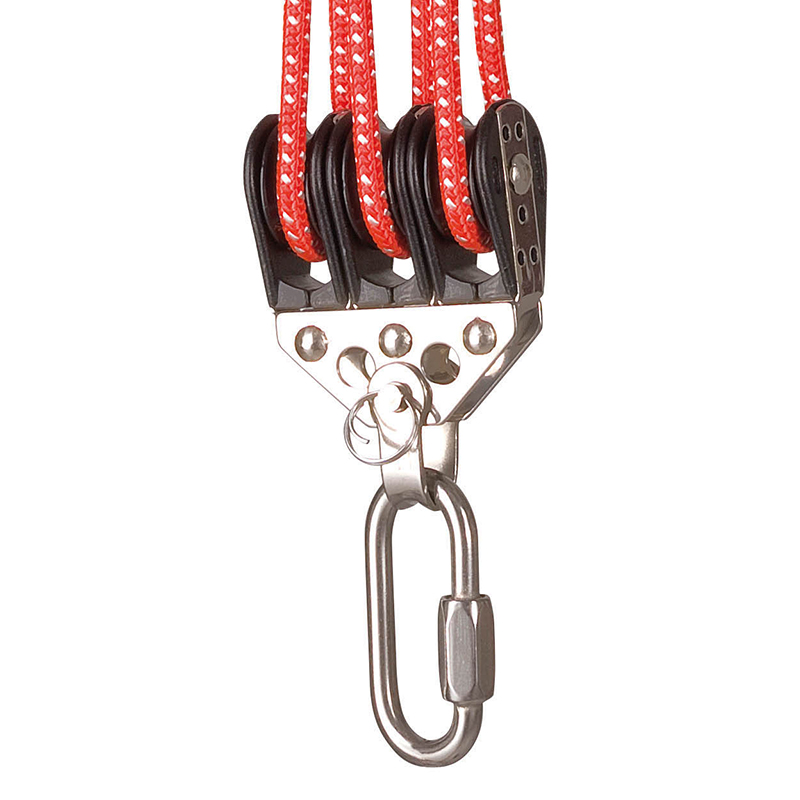

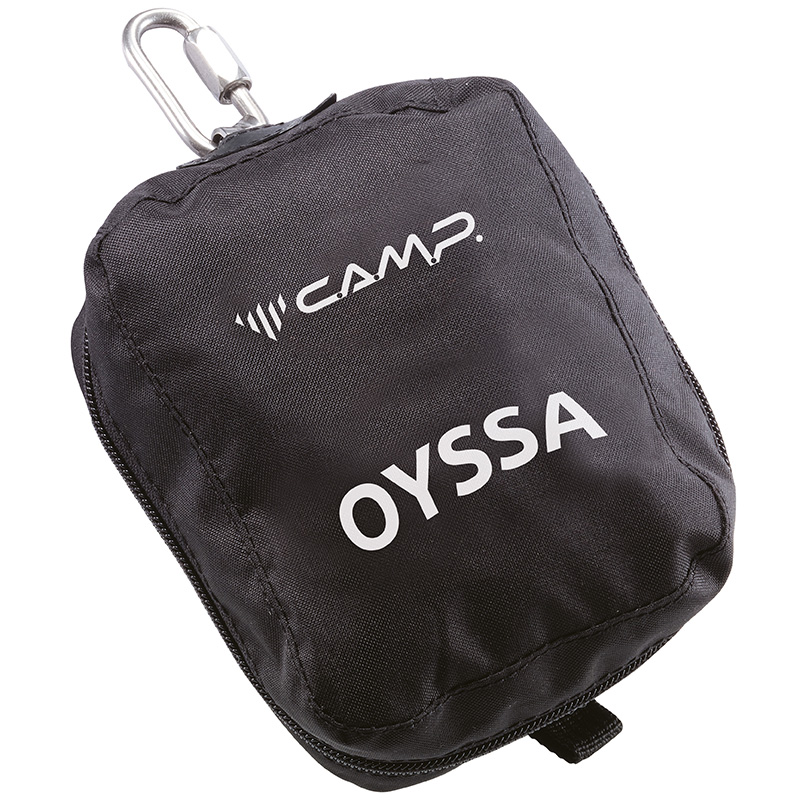

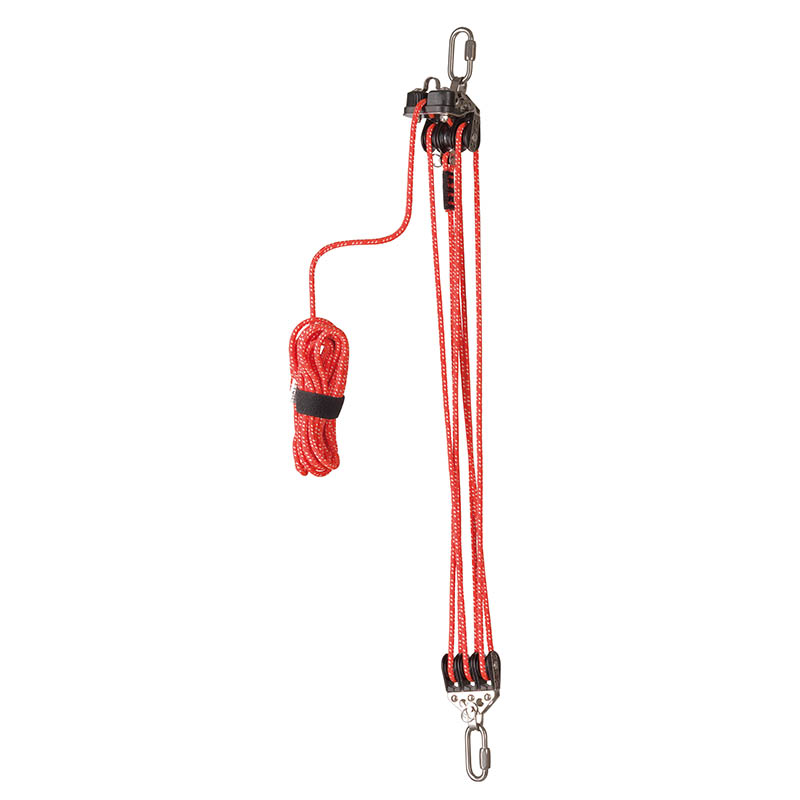

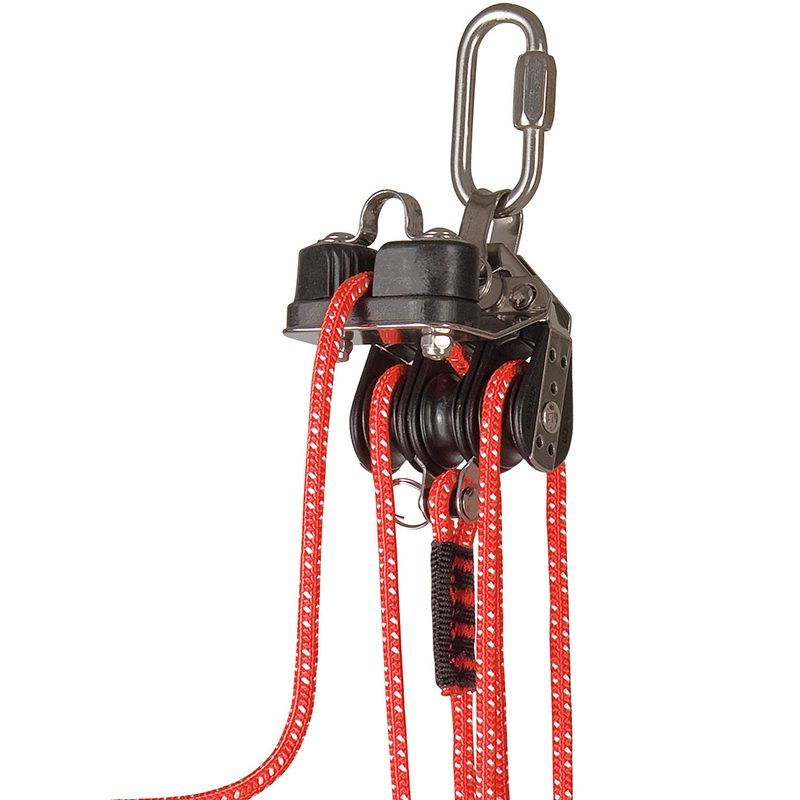

CAMP OYSSA rescue pulley system
MBS 7 kN || WLL 120 kg || Configuration 6:1 || Max. length 7.6 m
Description CAMP OYSSA rescue pulley system

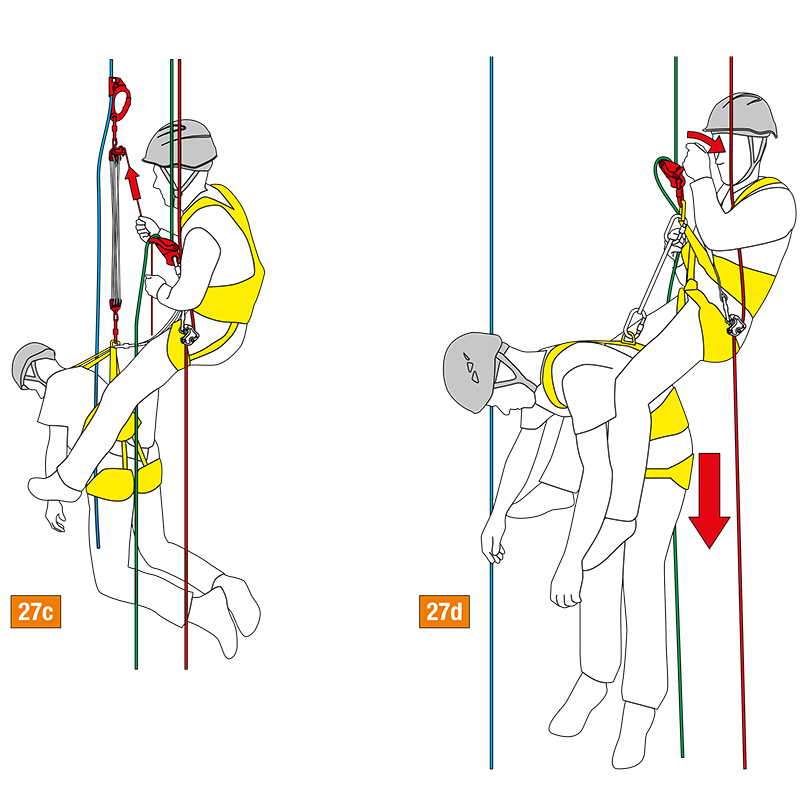

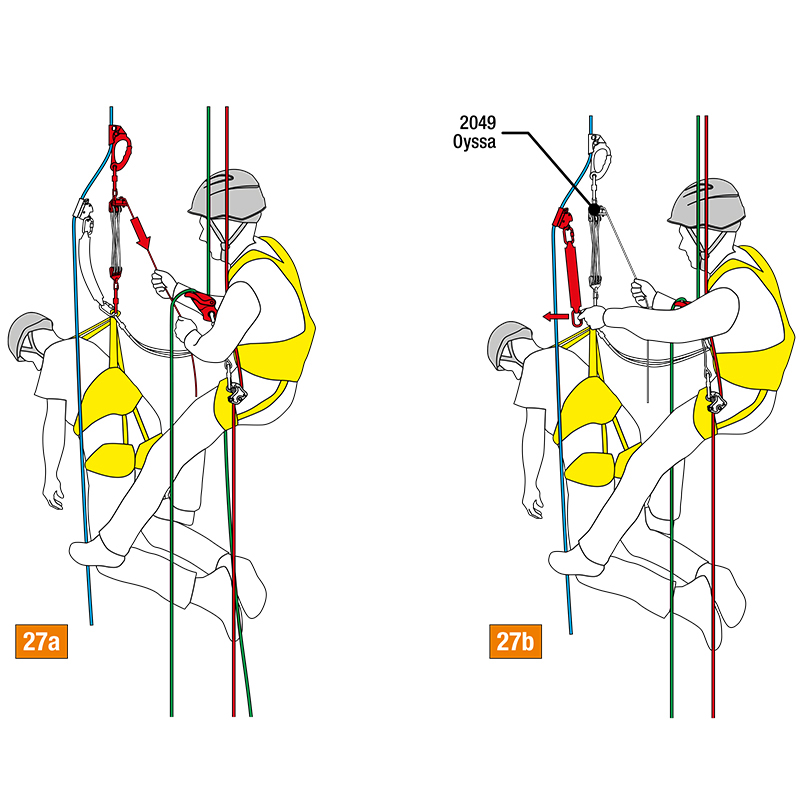

Compact, pre-rigged emergency pulley system with a 6:1 reduction ratio allows an injured person to be unweighted from their fall position and lifted for attachment to the rescuer for safe descent.
-
Reduction ratio: 6 : 1
-
Maximum recovery height: 1 m
-
Working load limit: 120 kg
-
Minimum breaking load: 7 kN
-
Weight: 370 g (13.1 oz)
-
Not PPE – must always be used together with a complete fall arrest system
Try the product in our store
Špitálka 421/23a, 602 00 Brno
View in Google Maps
Open MO - FR: 09:00-16:00
Parameters
| Article MPN | 2049 |
|---|---|
| Weight | 370 g |
| Breaking load (MBS) | 7 kN |
| Working load (WLL) | 120 kg |
| Průměr | 16 mm |
| Rope Diameter | 4 mm |
| Reduction ratio | 6:1 |
Download
CAMP OYSSA manual (pdf, 335.7 kB)
CAMP OYSSA product sheet (pdf, 359.6 kB)
Manufacturer/Importer information
| Manufacturing company | CAMP Safety s.r.l. |
|---|---|
| Address | Via Nazionale 93, 38042 Calceranica al Lago (TN), Italy |
