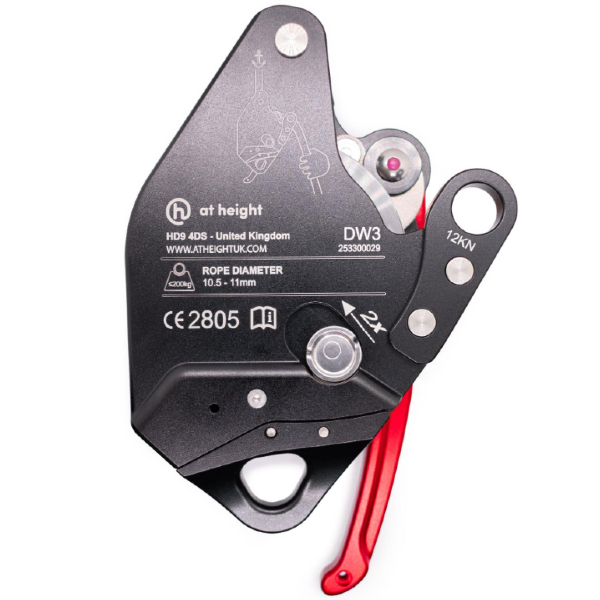

Description AT HEIGHT DRILL WINCH PRO powered ascender

The DW2 and DW3 Drill Winches by At Height Ltd are precision-engineered lifting and lowering devices designed for both materials handling and personnel operations. Suitable for a wide range of applications—including work at height, technical rescue, rigging, and lifting—these winches are drill-operated and built for safety, reliability, and performance.

The device is CE certified according to the Machinery Directive 2006/42/EC as a LIFTING SYSTEM FOR PERSONS AND GOODS USING A ROPES and comply the requirements of the Machinery Directive 2006/42/EC, Annex 4, Part 17, and all essential health and safety requirements listed in Annex 1.

DRILL WINCH PRO Specifications

• Model: DW3
• Standards: Machinery Directive 2006/42/EC, Annex 4
• Product Type: Drill Winch (Lifting and Lowering Device)
• Weight: 1.5 kg
• Rope Compatibility: EN 1891 type A, rope diameter 10.5 mm to 11 mm
• Maximum Rated Load: 200 kg
• Gear Ratio: 8:1
• Max. climbing speed: 60 m/min (depending on the power source)
• Becket: Yes, MBS 12 kN
• Drill Torque: ≥ 100 Nm recommended
  Do not use impact or hammer drills
• Free Fall: Do not exceed a free fall distance of more than 0.3 m
• Operating Temperature: -20 ºC to +40 ºC
• Lifespan: Unlimited - limited only by wear and tear

Package contents: 1x DRILL WINCH PRO, 4x hexa-bit for drill, 1x K15 ALU OVAL carabiner, 1x transport box
